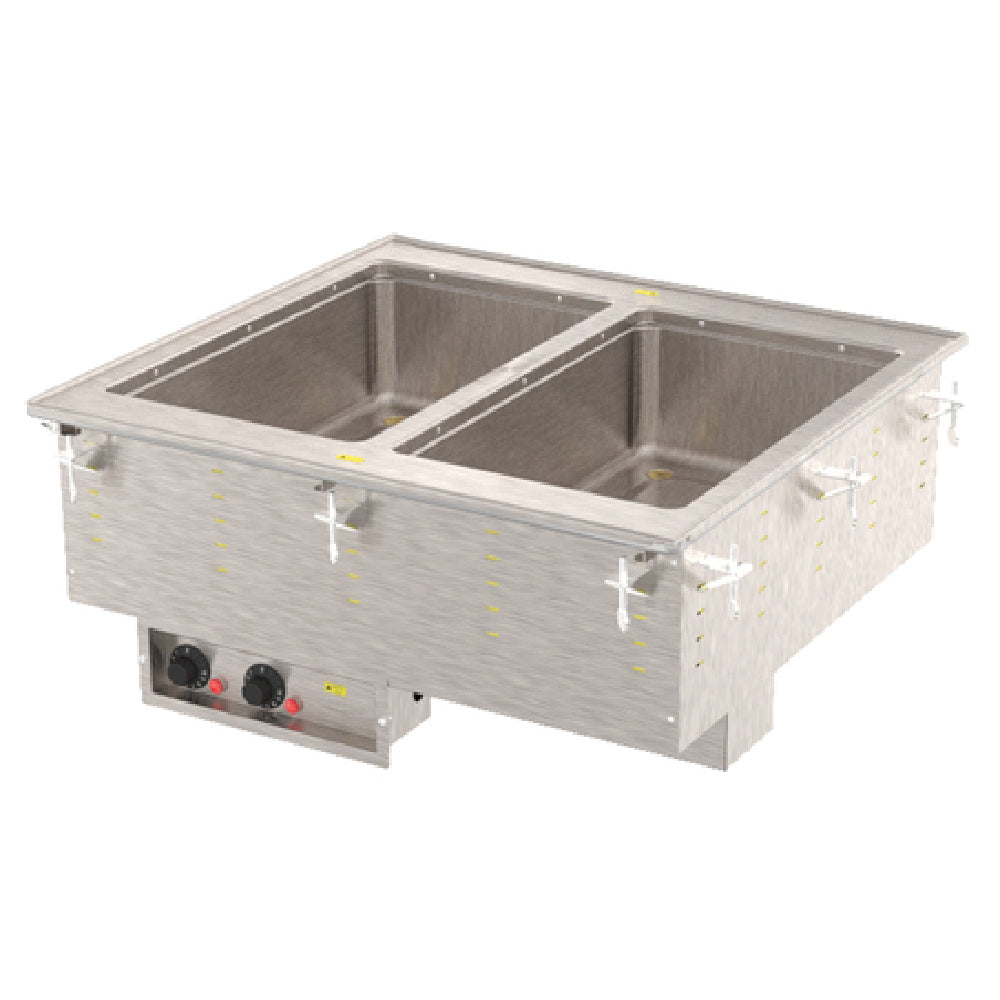

Vollrath 3640080HD Hot Food Well Unit Drop-In Electric
Delivery to:
- Drop-in electric hot food unit for convenient installation
- Two 12" x 20" insulated stainless steel wells
- Auto-fill feature for hassle-free operation
- View More Details
Price-match Guarantee
Price-match Guarantee
Our Price-Match Guarantee promises to match any lower price you find at approved competitors within 30 days. See terms.
Secure Shopping
Secure Shopping
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy. Learn more.
The Vollrath 3640080HD Hot Food Well Unit Drop-In Electric is a highly specialized kitchen equipment designed to provide exceptional performance in maintaining optimal food temperatures. This unit features two individual wells, each measuring 12" x 20", crafted from 20 gauge/316 marine-grade stainless steel, ensuring durability and resistance to corrosion. The wells are insulated for enhanced energy efficiency and operational in a wet mode only, supported by an auto-fill system for convenience. The overall dimensions of the unit are 28-1/4" wide, 26" deep, and 21-1/2" high, with a cutout size requirement of 27-1/2" wide by 25-1/4" deep, incorporating a 7/8" corner radius. Each well is equipped with individual thermostatic controls mounted on a panel with a power cord, alongside a power indicator light for straightforward monitoring. The unit includes a 1" copper manifold drain with both individual well and manifold shutoffs, preventing spills with a drip-free flange. The exterior housing is constructed from stainless steel, complemented by an 18 gauge stainless steel top. Positioning clips are included for easy installation. Operating at 1250 watts, 208 volts, and 6.0 amps, the unit is fitted with a NEMA 6-15P plug. NSF and cULus certified, this product is proudly made in the USA, catering to diverse segments within the food service industry.
Product Description
The Vollrath 3640080HD Hot Food Well Unit Drop-In Electric is a highly specialized kitchen equipment designed to provide exceptional performance in maintaining optimal food temperatures. This unit features two individual wells, each measuring 12" x 20", crafted from 20 gauge/316 marine-grade stainless steel, ensuring durability and resistance to corrosion. The wells are insulated for enhanced energy efficiency and operational in a wet mode only, supported by an auto-fill system for convenience. The overall dimensions of the unit are 28-1/4" wide, 26" deep, and 21-1/2" high, with a cutout size requirement of 27-1/2" wide by 25-1/4" deep, incorporating a 7/8" corner radius. Each well is equipped with individual thermostatic controls mounted on a panel with a power cord, alongside a power indicator light for straightforward monitoring. The unit includes a 1" copper manifold drain with both individual well and manifold shutoffs, preventing spills with a drip-free flange. The exterior housing is constructed from stainless steel, complemented by an 18 gauge stainless steel top. Positioning clips are included for easy installation. Operating at 1250 watts, 208 volts, and 6.0 amps, the unit is fitted with a NEMA 6-15P plug. NSF and cULus certified, this product is proudly made in the USA, catering to diverse segments within the food service industry.
Product information
| Manufacturer | Vollrath |
|---|---|
| Model Number | 3640080HD |
| Manufacturer Part # | 3640080HD |
| Construction | Stainless Steel Construction |
| Drain | With Drain |
| Wet or Dry operation | Wet |
| Controls | Thermostatic Controls |
| Style | Individual Pans |
| Insulated or Non-Insulated | Insulated |
| Height | 21.5" |
| Width | 28.25" |
| Depth | 26" |
| Weight | 120 lbs |
| NSF Approved | Yes |
| cULus Approved | Yes |
| Made in USA Approved | Yes |
Certifications
UL US & Canada
The item has been tested by Underwriters Laboratories (UL) for sanitation hazard standards and meets or exceeds expectations. The item can be used in the United States and Canada.
Made in the USA
This item was made in the United States of America.
NSF Listed
The item meets the standards imposed by NSF International. These standards relate to health, public safety and the environment.
