Vollrath 69718S-1-VCR V-Class Custom Downdraft Vent System: Includes Base & 18" Tall Tempered Curved Breathguard With Integrated ANSUL R-102 Fire Suppression System
Delivery to:
- Custom Downdraft Vent System with ANSUL R-102 Fire Suppression
- 18" Tall Tempered Curved Breathguard for optimal safety
- Downdraft Recirculating Vent with dual grease and carbon filters
- View More Details
Price-match Guarantee
Price-match Guarantee
Our Price-Match Guarantee promises to match any lower price you find at approved competitors within 30 days. See terms.
Secure Shopping
Secure Shopping
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy. Learn more.

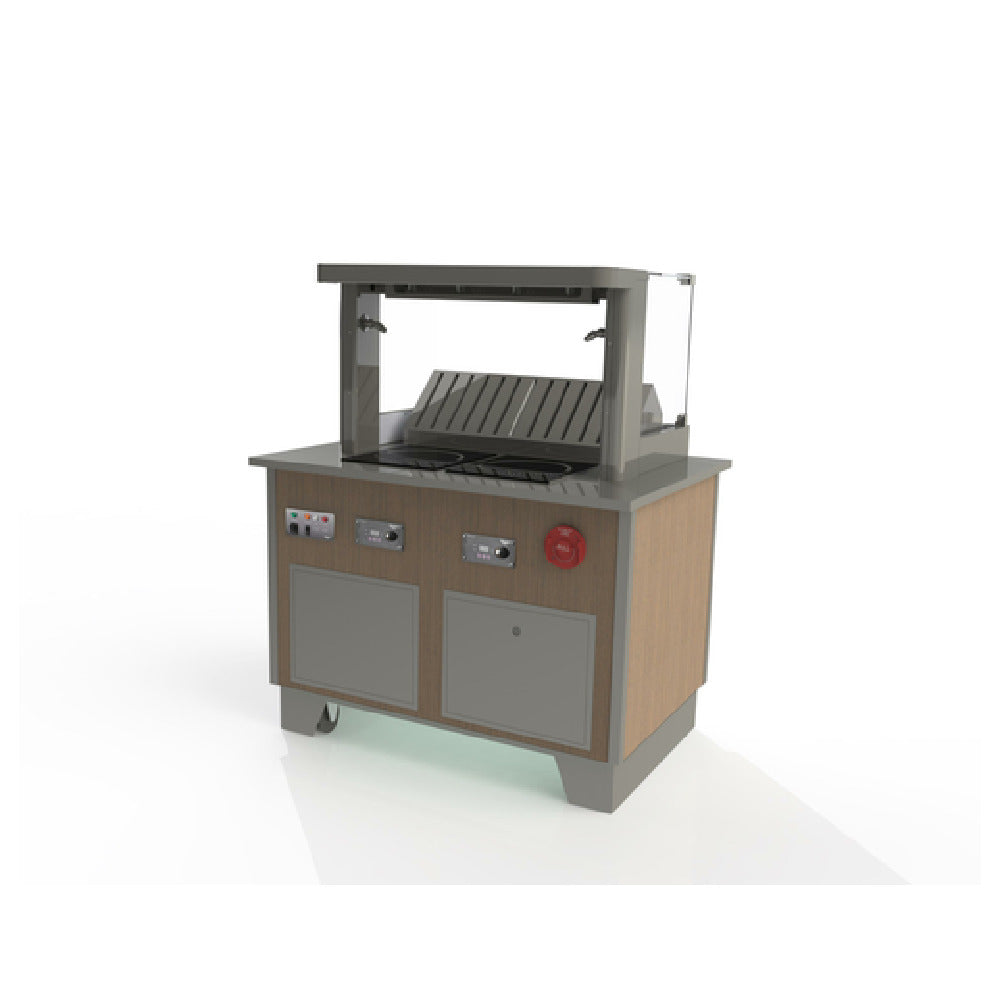

The Vollrath 69718S-1-VCR V-Class Custom Downdraft Vent System is an advanced ventilation solution designed for high-demand kitchen environments. This system includes a base and an 18-inch tall tempered curved breathguard, integrated with the ANSUL R-102 Fire Suppression System, ensuring safety alongside efficient performance. It features a downdraft recirculating vent, equipped with two grease and two carbon/particulate filters, effectively managing air quality and emissions below 5.00 mg/m3, even when using 30% fat ground beef. This system comes with a 59501 Mirage Drop-In Range and a rectangle countertop cutting board, adding versatility to its functionality. Stainless kickplates on the front, left, and right sides, along with 5-inch casters with adjustable legs, offer both durability and mobility. Certified under UL710B, UL197, and UL-Sanitation standards, and NSF certified to NSF4, it meets the stringent EPA Method 202 requirements from Section 59 of UL710B and NFPA96. Made-to-order in the USA, the product’s specifications ensure reliability and compliance in diverse kitchen settings. However, note that the quoted price excludes ANSUL fees, and the custom product cannot be canceled or returned. For detailed dimensional and electric information, refer to the spec sheet.
Product Description
The Vollrath 69718S-1-VCR V-Class Custom Downdraft Vent System is an advanced ventilation solution designed for high-demand kitchen environments. This system includes a base and an 18-inch tall tempered curved breathguard, integrated with the ANSUL R-102 Fire Suppression System, ensuring safety alongside efficient performance. It features a downdraft recirculating vent, equipped with two grease and two carbon/particulate filters, effectively managing air quality and emissions below 5.00 mg/m3, even when using 30% fat ground beef. This system comes with a 59501 Mirage Drop-In Range and a rectangle countertop cutting board, adding versatility to its functionality. Stainless kickplates on the front, left, and right sides, along with 5-inch casters with adjustable legs, offer both durability and mobility. Certified under UL710B, UL197, and UL-Sanitation standards, and NSF certified to NSF4, it meets the stringent EPA Method 202 requirements from Section 59 of UL710B and NFPA96. Made-to-order in the USA, the product’s specifications ensure reliability and compliance in diverse kitchen settings. However, note that the quoted price excludes ANSUL fees, and the custom product cannot be canceled or returned. For detailed dimensional and electric information, refer to the spec sheet.
Product information
| Manufacturer | Vollrath |
|---|---|
| Model Number | 69718S-1-VCR |
| Manufacturer Part # | 69718S-1-VCR |
| Base Construction | Stainless Steel Base |
| Top Construction | Specify Top |
| Design | Specify |
| Depth (front - back) | 34" D |
| Burner Qty | (1) Burner |
| Exterior Finish | Specify Exterior |
| Overall Width (side - side) | 43" - 48" W |
| Working Height | 34" H |
| Height | 51.55" |
| Width | 47" |
| Depth | 34" |
| NSF Approved | Yes |
| UL Approved | Yes |
| UL-Sanitation Approved | Yes |
| Made in USA Approved | Yes |
Certifications
UL Listed
The item has been tested by Underwriters Laboratories (UL) for sanitation hazard standards and meets or exceeds expectations.
Made in the USA
This item was made in the United States of America.
NSF Listed
The item meets the standards imposed by NSF International. These standards relate to health, public safety and the environment.
