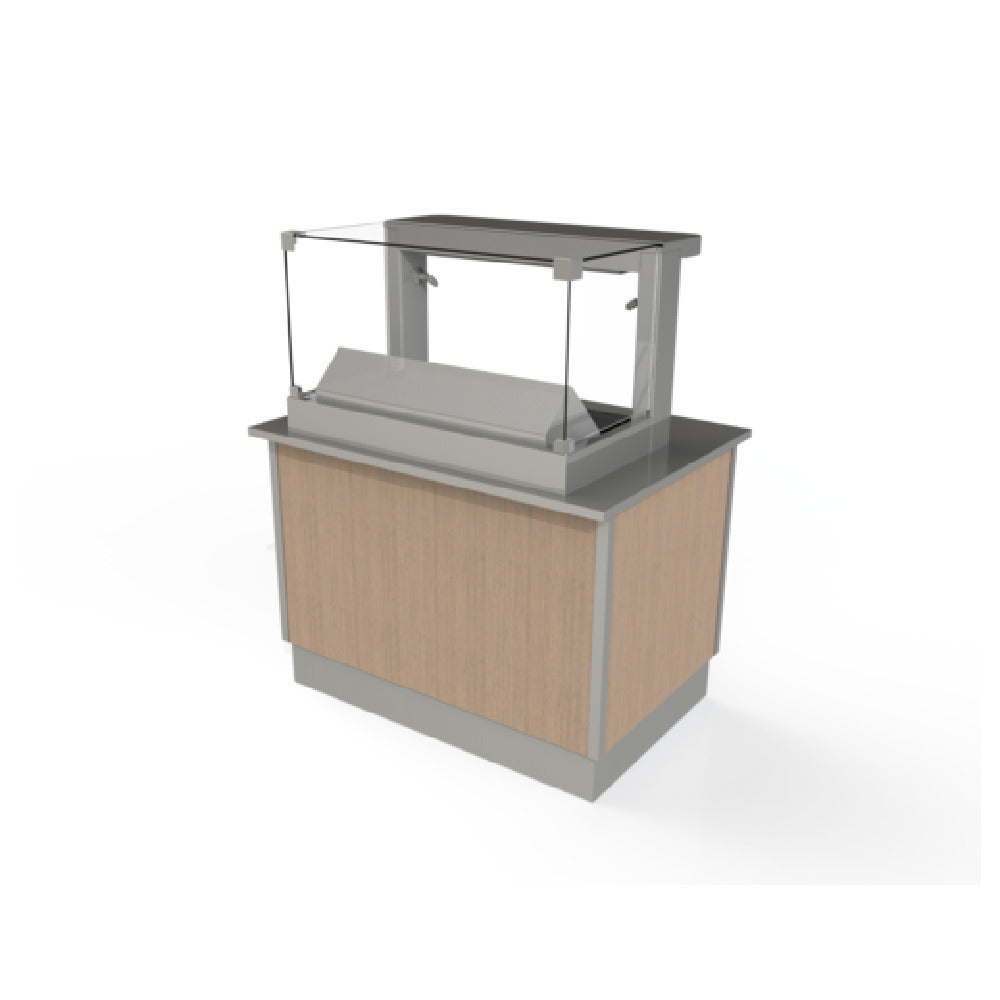

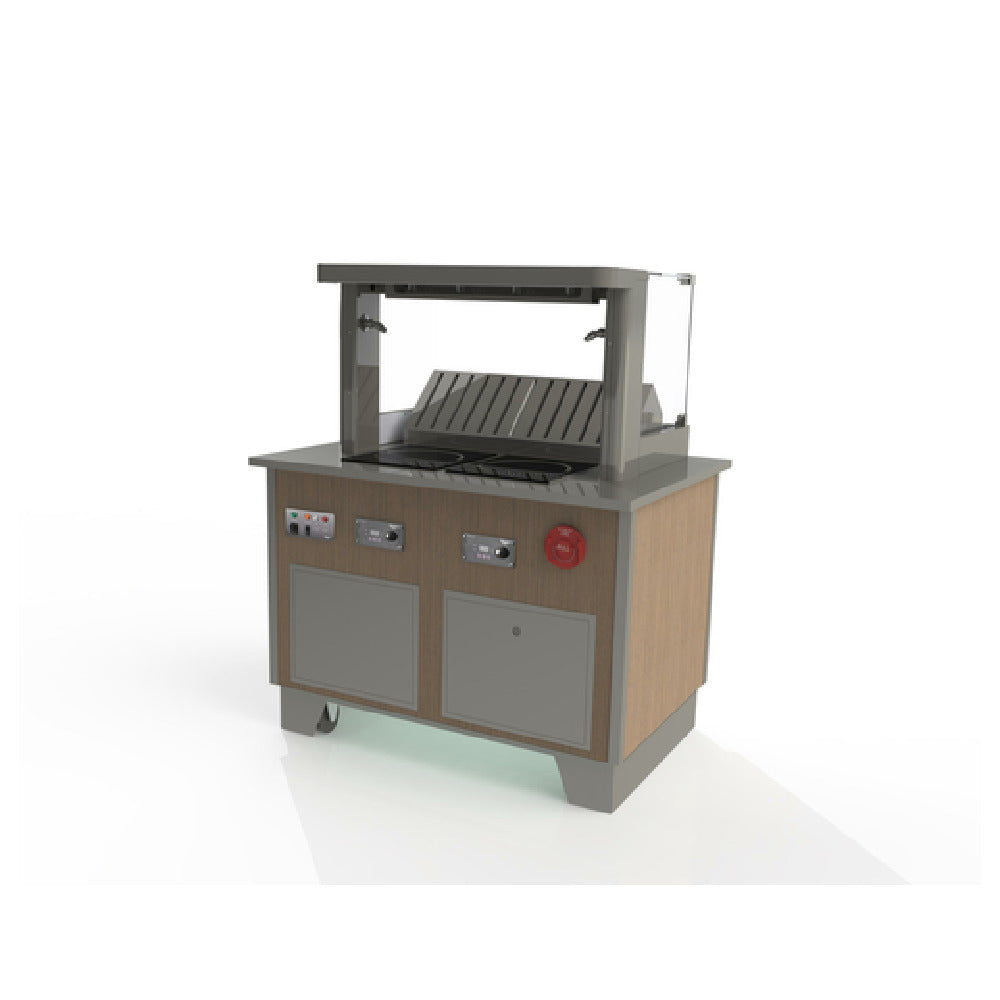

Vollrath 69722S-1-VCR V-Class Custom Downdraft Vent System: Includes Base & 22" Tall Tempered Curved Breathguard With Integrated ANSUL R-102 Fire Suppression System
Delivery to:
- (Vollrath 69722S-1-VCR) Efficient downdraft vent system
- Integrated ANSUL R-102 fire suppression
- Includes 22" tall tempered curved breathguard
- View More Details
Special Quote Item.
Price-match Guarantee
Price-match Guarantee
Our Price-Match Guarantee promises to match any lower price you find at approved competitors within 30 days. See terms.
Secure Shopping
Secure Shopping
Shop with confidence—our site is secured with SSL encryption, and we prioritize your data security and privacy. Learn more.
The Vollrath 69722S-1-VCR V-Class Custom Downdraft Vent System is a state-of-the-art ventilation unit designed for specialized kitchen environments. This sophisticated system includes a base unit with a 22-inch tall tempered curved breathguard, integrated with the ANSUL R-102 Fire Suppression System for enhanced safety. The downdraft recirculating vent system is equipped with two grease and two carbon/particulate filters, ensuring effective removal of cooking emissions. Additionally, it comes with a 59501 Mirage Drop-In Range and a rectangular countertop cutting board, which can be positioned in either a non-induction left or right location. The system is further enhanced with stainless steel kickplates on the front, left, and right sides, and features 5-inch casters with adjustable legs for mobility and stability. Certified to UL710B, UL197, and UL-Sanitation standards, the Vollrath vent system meets NSF4 requirements and adheres to EPA Method 202 from Section 59 of UL710B and NFPA96. Notably, it maintains emissions of less than 5.00 mg/m3 even when tested with 30% fat ground beef. Proudly made-to-order in the USA, this custom product requires coordination with a local ANSUL dealer for charging and inspection, as additional fees apply.
Product Description
The Vollrath 69722S-1-VCR V-Class Custom Downdraft Vent System is a state-of-the-art ventilation unit designed for specialized kitchen environments. This sophisticated system includes a base unit with a 22-inch tall tempered curved breathguard, integrated with the ANSUL R-102 Fire Suppression System for enhanced safety. The downdraft recirculating vent system is equipped with two grease and two carbon/particulate filters, ensuring effective removal of cooking emissions. Additionally, it comes with a 59501 Mirage Drop-In Range and a rectangular countertop cutting board, which can be positioned in either a non-induction left or right location. The system is further enhanced with stainless steel kickplates on the front, left, and right sides, and features 5-inch casters with adjustable legs for mobility and stability. Certified to UL710B, UL197, and UL-Sanitation standards, the Vollrath vent system meets NSF4 requirements and adheres to EPA Method 202 from Section 59 of UL710B and NFPA96. Notably, it maintains emissions of less than 5.00 mg/m3 even when tested with 30% fat ground beef. Proudly made-to-order in the USA, this custom product requires coordination with a local ANSUL dealer for charging and inspection, as additional fees apply.
Product information
| Manufacturer | Vollrath |
|---|---|
| Model Number | 69722S-1-VCR |
| Manufacturer Part # | 69722S-1-VCR |
| Working Height | 34" H |
| Overall Width (side - side) | 43" - 48" W |
| Exterior Finish | Specify Exterior |
| Base Construction | Stainless Steel Base |
| Burner Qty | (1) Burner |
| Depth (front - back) | 34" D |
| Design | Specify |
| Top Construction | Specify Top |
| Height | 55.55" |
| Width | 47" |
| Depth | 34" |
| NSF Approved | Yes |
| UL Approved | Yes |
| UL-Sanitation Approved | Yes |
| Made in USA Approved | Yes |
Certifications
UL Listed
The item has been tested by Underwriters Laboratories (UL) for sanitation hazard standards and meets or exceeds expectations.
Made in the USA
This item was made in the United States of America.
NSF Listed
The item meets the standards imposed by NSF International. These standards relate to health, public safety and the environment.
